Active subwoofer

Active subwoofer

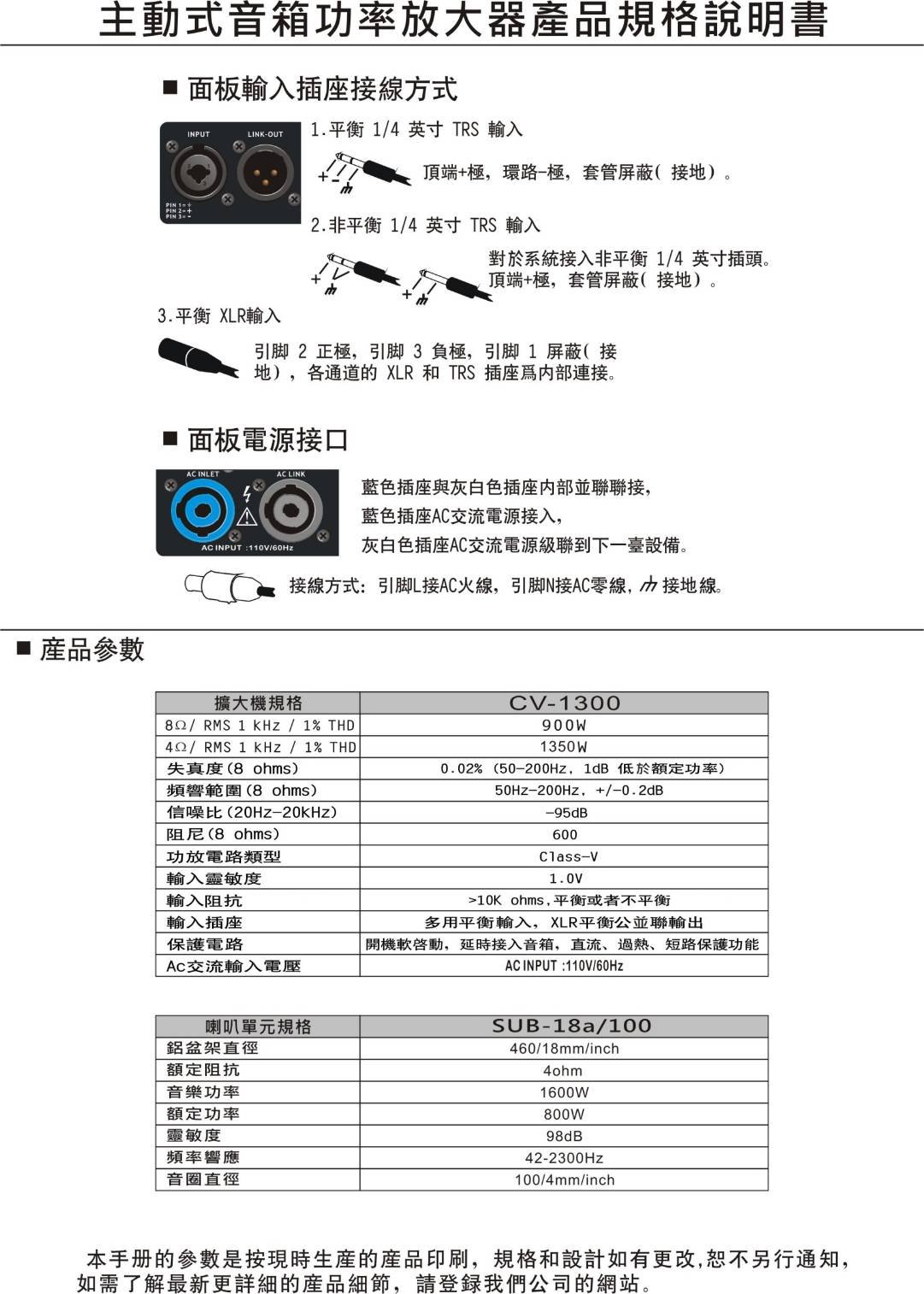

Active Speaker Power Amplifier Product Specification

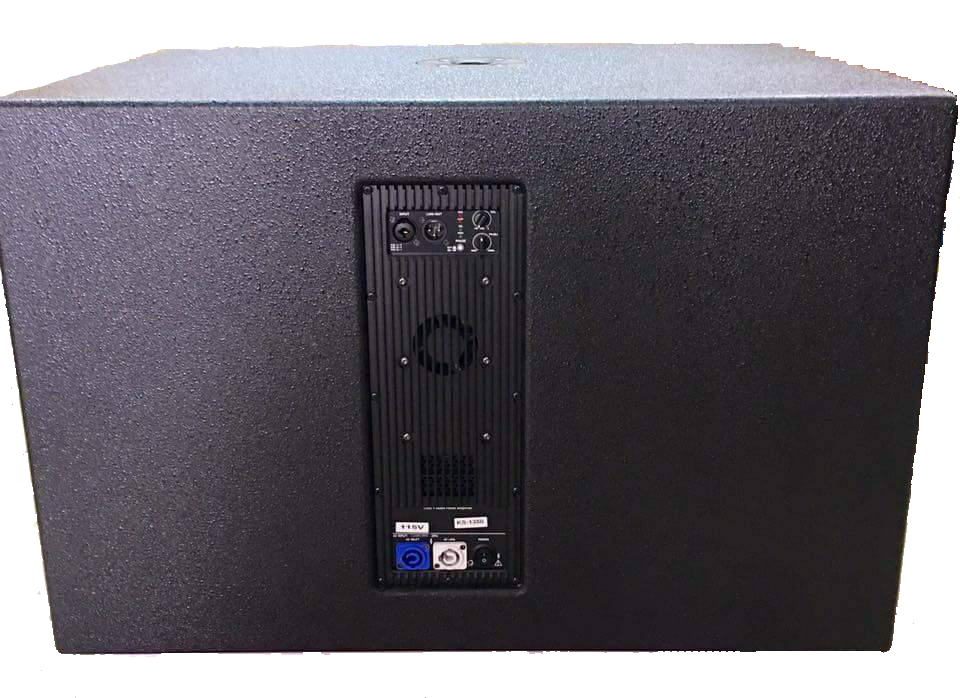

Panel function description
1.POWER power switch Push the rocker switch up to turn on the amplifier. This switch allows the power supply to switch between “on” and “off”.

2.AC INLET power input socket
Use the “PowerKon” AC power input socket head to connect to the local applicable power source to connect to the device.

3.AC LINK AC power parallel socket
Use the POWERKON dedicated power plug and connect to the next device

4.INPUT signal input socket
This is a multi-purpose balanced socket that can be connected to the device using an XLR or “6.35 JACK” plug.

5.LINK OUT signal parallel output socket
Use the XLR plug to connect the signal to the next device. Please note that this is not a signal input socket.

6.FREQADJ crossover point control knob
The crossover point control option is used to adjust the frequency division range of the device’s crossover point from 50Hz to 200Hz.

7.HASE phase selection switch
When the switch is popped up, the output phase of the device is at 0 degrees, and when the switch is pressed, the output phase of the device is at 180 degrees.
8.POW power indicator
When the power is turned on, the POW indicator will light immediately, indicating that the AC switch is on and the amplifier is connected.
9.SIF signal indicator

Amplifier specification

CV-1300

8Ω/RMS 1kHz/1% THD

900W

4Ω/RMS 1kHz/1% THD

1350W

Distortion (8 ohms)

0.02%(50-200Hz,1dB Below rated power)

Frequency Range (8 ohms)

50Hz-200Hz,+/-0.2dB

SNR (20Hz-20KHz)

-95dB

Damping Coefficient ((8 ohms))

600

Amplifier circuit type

Class-V

Input Sensitivity

1.0V

Input Sensitivity

>10K ohms

Input socket

Multi-purpose balanced input, XLR balanced for parallel output

Protection circuit

Boot soft start, delay access to speakers, DC, overheat, short circuit protection

AC INLET power input socket

ACINPUT:110V/60Hz

Speaker unit specifications

SUB-18a/100

Aluminum frame diameter

460/18mm/inch

Rated impedance

4ohm

Music power

1600W

rated power

800W

Sensitivity

98dB

Frequency Response

42-2300Hz

Voice Coil Diameter

100/4mm/inch
